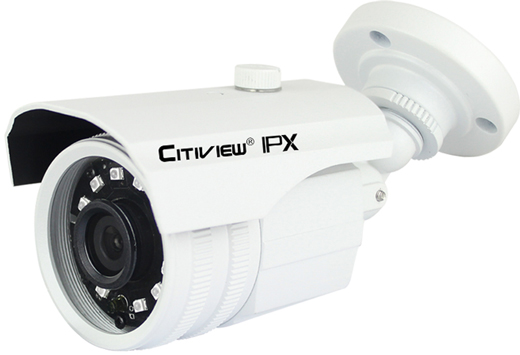

CT-MHD-CI20B-2EB
(Weatherproof IR Camera)
- 1/4″ 1.0 Megapixel
- 14 x 12 pcs IR LED, IR Range 20M
- 3-Axis Bracket, Hidden Cable Design
- Built-in 3.6mm ICR Lens
Specifications
| Sensor | 1/4″ 1.0 Megapixels CMOS Sensor |
| Chipset | CMOS Sensor GC1024 |
| DSP Device | FH8532 |
| Min. Illumination | 0.001Lux |
| Electronic Shutter | Auto/ 1/ 50(1/60)-1/ 100,000Sec |
| Day/Night | Auto(ICR)/ B&W/ Colour/ EXT ICR Switching |
| Video Parameter | DWDR, Mirror, 3D Noise Reduction, Sharpness/ Lightness Adjustable |
| Wavelength | 850nm |
| IR Distance | 20M |
| HD Lens | 3.6mm ICR Lens (6mm is Optional) |
| Lens Interface Type | M12 |
| Video Compression | H.264 |
| Resolution | Main Stream: 1280 x 960; Sub Stream: 704 x 576 |
| Effective Pixels | 1280 x 720, 720P |
| Sync System | Internal |
| Encoding System | Constant Bit Rate, Variable Bit Rate Optional |
| Video Bit Rate | 16Kbps – 8000Kbps |
| Stream Type | Complex Stream/Video Stream |
| Audio Compression | G.711 |
| Audio Bit-rate | 64Kbps |
| Motion Detection | Single Detection Zone or Multi-Level Sensitivity |
| Video Mask | Support 4 Mask Areas |
| Screen Capture | JPEG, Max Resolution based on Encoding Resolution |
| Protocols | TCP/IP, UDP, HTTP, RTP/RTSP, DNS, DDNS, DHCP, PPPOE, NTP, SMTP, UPNP |
| Port Protocol | I8S, ONVIF |
| Network Interface | RJ-45 10M/100M Adaptive |
| Video Output | 1 Vp-p/ 75 Ohms |
| Operating Conditions | -20°C~50°C |
| Waterproof Criteria | IP66 |
| Power Supply | DC12V±10% |
| Size | 160mm (W) x 70mm (H) x 60mm (L) |
| Weight | 500g |
