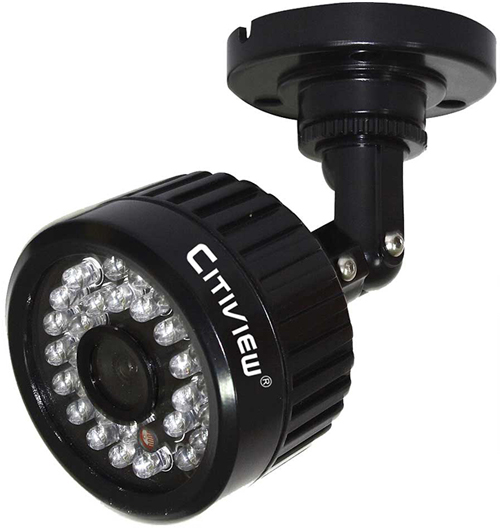

CT-PC620-ESB
(Waterproof IR Camera)

• 1/3″ Pixel Colour Camera + IR Cut Filter
• 30pcs* = 5mm IR LED, 25M IR Range
• 3-Axis Built-in Cable Bracket Suitable for Wall and Ceiling Installation
• Standard 3.6mm Fixed Lens

Specifications

Sensor	1/3″ Pixel Colour Camera
Min. Illumination	0 Lux (with IR LED On)
Effective Pixels	PAL: 795(H) x 596 (V)
Horizontal Resolution	600 TVL
S/N Ratio	> 48dB
Clock Frequency	PAL: 28.375
Scanning System	2:1 Interlace
Sync System	Internal/ Negative Sync
Electronic Shutter	PAL: 1/50~1/100,000Sec
Gamma Characteristic	0.45
IR Distance	25M (with 24 Units of Infrared LED)
IR Power	CDS Auto Control
Video Output	1 Vp-p/75 Ohms
HD Lens	Built-in 3.6mm Lens
Automatic Gain Control	AUTO
Operating Conditions	-10°C~50°C/ RH95% max
Waterproof Criteria	IP66
Power Supply	DC12V±10% / 300mA
Size	108mm (W) x 84mm (H) x 61mm (L)
Weight	400g
