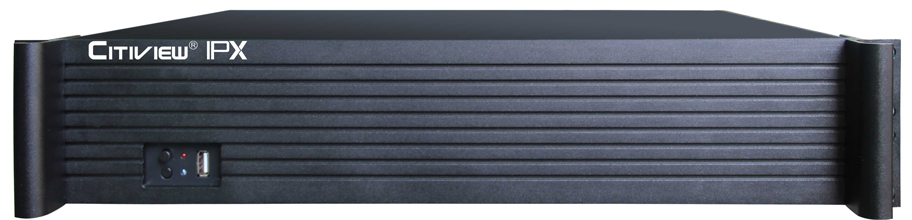

CT-NVR-9316EX Citiview
(9HDD – Network Video Recorder)
- Megapixel HD Network Video Preview, Storage & Playback
- ONVIF Protocol, High Profile S, High Profile G, Compatible with Different IP Camera
- Supports PTZ Monitor on Preview Mode
- Supports Search, Playback and Backup by Event
Specifications
| Product Name | CT-NVR-9316EX |
| Image Code Control | Image code quality adjustable, variable bitstream optional |
| Dual Stream | Main stream and Sub Stream |
| Video Standard | 1080P (1920×1080) 30fps/960 (1280×720) 30fps |
| Monitoring Image Quality | 1080P (1920×1080)/960P(1280×960) 720P(1280×720) |
| Image Motion Detection | Multiple Detection Areas; 6-Level Sensitivity (IPC Support) |
| Recording Playback Quality | 9CH 960P Playback, 4CH 5MP/3MP/1080P Playback Simultaneously |
| Region Cover | 4 Cover Regions (IPC Support) |
| Recording Mode | Supports Manual, Auto, Motion Detection, Alarm Trigger Record Mode |
| Backup Way | Support U Disk, USB Mobile HDD, USB DVD-RW, Network Storage and Backup |
| Operation Way | Mouse |
| Local Login | Username and Password |
| Recording Storage | Local HDD and Network |
| Video Input | 25 x (1280*960) + sub [720*576] + 4Ref. + 9 Play. 25CH 1.3MP IP Camera 16 x (1920*1080) + sub [720*576] + 4Ref. + 4 Play. 16CH 2.0MP IP Camera 8 x (2048*1536) + sub [960*576] + 4Ref. + 4 Play. 8CH 3.0MP IP Camera 4 x (2592*1944) + sub [960*576] + 4Ref. + 4 Play. 4CH 5.0MP IP Camera |
| Audio Input | 25CH/16CH Network Audio Input |
| Audio Output | 1CH RCA |
| Video Output | 1CH VGA + 1CH HDMI |
| Network Port | 2 RJ45, 10M/100M/1000M Self-Adaptive LAN Port |
| RS485 Port | Full Duplex Standard 485 Port |
| USB Port | 1 x USB 3.0 Ports, 2 x USB 2.0 Ports |
| Alarm Input/Output | 4CH/4CH |
| Wireless Port | WiFi |
| HDD Port | 9 x SATA + 1 x E-SATA HDD Port |
| HDD Max. Capacity | 4TB HDD (Each Port) |
| Mobile Surveillance | Supports iPhone, Android, Windows Mobile |
| Power Consumption | <30W (Without HDD) |
| Power Supply | AT x 110-220V 250W 50-60Hz |
| Humidity Temperature | 10% ~ 90% |
| Working Temperature | -10°C~55°C |
| Dimension | Equipment: 440 x 432 x 90mm; Packaging: 539 x 550 x225mm |
| Weight without HDD | N.W: 7.4Kg; with Packaging: 9.8Kg |
| Outside Carton | 2pcs Carton; 555 x 545 x 470mm; Weight: 21Kg |
| Installation Method | Desktop Installation |
